جزئیات محصول
محل منبع: NingBo چین
نام تجاری: Lingkai
گواهی: ISO CE
شماره مدل: طناب UHMWPE
شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش: 2000 متر
قیمت: get the latest
جزئیات بسته بندی: طبل، قرقره، بدون قرقره
زمان تحویل: 3-10 روز
شرایط پرداخت: T/T
قابلیت ارائه: 2000 کیلومتر در ماه
زمان تحویل: |
ظرف 10 روز |
نیروی شکسته: |
حداکثر 290 KN |
بار شکسته: |
قدرت بالا |
نوع: |
با ترمز |
ویژگی: |
سبک، انعطاف پذیر |
تعداد رشته ها: |
12 |
رشته ها: |
12 |
گواهینامه: |
ISO 9001، CE |
زمان تحویل: |
ظرف 10 روز |
نیروی شکسته: |
حداکثر 290 KN |
بار شکسته: |
قدرت بالا |
نوع: |
با ترمز |
ویژگی: |
سبک، انعطاف پذیر |
تعداد رشته ها: |
12 |
رشته ها: |
12 |
گواهینامه: |
ISO 9001، CE |
Uhmwpe Rope is a type of rope that is created by braiding high-strength UHMWPE (Ultra-High Molecular Weight Polyethylene) fiber together. This rope is then coated with a protective polyester layer to help prevent wear and tear. One of the primary uses for this type of rope is to string overhead transmission lines or for OPGW (Optical Ground Wire) Stringing.
Another use forUhmwpe Rope is for live line or hot line pulling. Because of its strength and durability, it is an ideal choice for situations where traditional ropes would not suffice and where electrical safety precautions are necessary.
High Strength Dupont Rope, on the other hand, is made of special polyester fiber that is braided from 12 strands and also covered with a protective layer. It is typically used as a pilot rope or pulling rope for overhead transmission line stringing operations.
Like Uhmwpe Rope, High Strength Uhmwpe Rope is a reliable and durable option that can withstand the demands of strenuous work conditions. The protective layer also helps to extend the life of the rope and makes it a wise investment for any operation that requires robust and reliable equipment.
DOUBLE LAYER BRAIDED UHMWPE ROPE:
High Strength Dupont Rope:

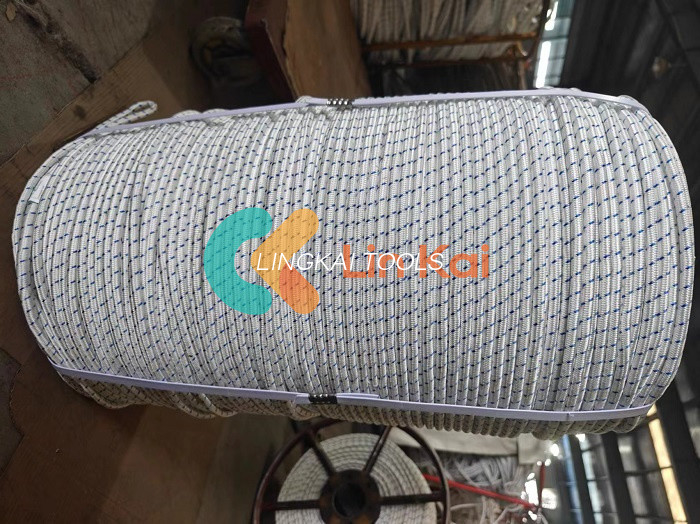

DOUBLE LAYER BRAIDED UHMWPE ROPE
| Item No. | Nominal diameter (mm) | Breaking Load (KN) | Diameter after covering Polyester (mm) | Net Weight (kg/1000m) | Weight After Covering (kg/1000m) |
| 18170A | 2 | 4.3 | 3 | 2.70 | 4.8 |
| 18170B | 3 | 8.5 | 4.5 | 4.65 | 9.6 |
| 18170D | 4 | 16.6 | 5.5 | 9.31 | 13.5 |
| 18170F | 5 | 24.4 | 7 | 14 | 20 |
| 18170G | 6 | 31.9 | 8 | 20 | 28.2 |
| 18170H | 7 | 43.6 | 9 | 27 | 36 |
| 18170J | 8 | 58.8 | 10 | 35 | 48.4 |
| 18170K | 9 | 70.3 | 11 | 42 | 58.5 |
| 18170L | 10 | 92.5 | 12 | 56 | 77 |
| 18170M | 11 | 115 | 13 | 70 | 97 |
| 18170N | 12 | 137 | 14 | 84 | 113.4 |
| 18170P | 13 | 159 | 15 | 98 | 132 |
| 18170Q | 14 | 180 | 16 | 106 | 150 |
| 18170R | 16 | 211 | 18 | 132 | 177 |
| 18170S | 18 | 296 | 21 | 186 | 247.3 |
The fiber rope can be utilized in various operations such as pilot rope or pulling rope in overhead transmission line stringing, hot line working, helicopter stringing or drone stringing.
The fiber rope is specially braided from double layer high strength Dupont polyester fiber making it anti-twisting and light weight.
In overhead transmission line stringing, the fiber rope plays a vital role as a pilot or pulling rope. Similarly, it can be used for hot line working with ease.
The rope is also packed in a steel reel which can be conveniently installed on reel winder of hydraulic puller directly, and used with efficiency.
