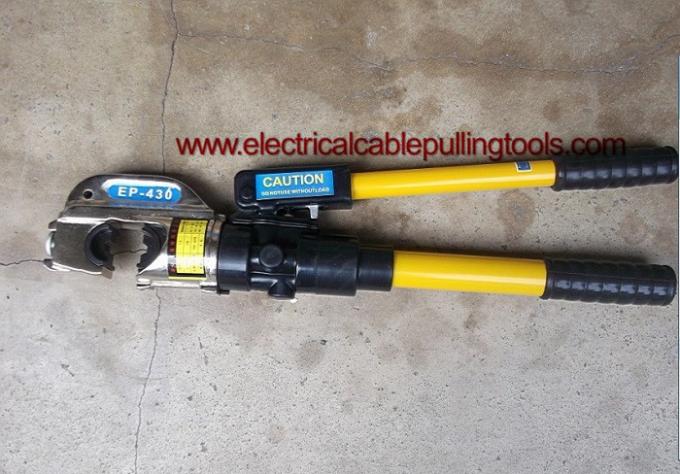

EP430 Hydraulic Cable Lug Crimping Tool With Safety Valve For Crimping Terminal 16 - 400sqmm

EP430 Hydraulic Cable Lug Crimping Tool With Safety Valve For Crimping Terminal 16 - 400sqmm
EP430 Hydraulic Cable Lug Crimping Tool With Safety Valve For Crimping Terminal 16 - 400sqmm EP430 Hydraulic Cable Lug Crimping Tool With Safety Valve For Crimping Terminal 16 - 400sqmm

Large Image :  EP430 Hydraulic Cable Lug Crimping Tool With Safety Valve For Crimping Terminal 16 - 400sqmm

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: EP430
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: get the latest
Packaging Details: Plastic packing
Delivery Time: 2-4 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000pcs/week
Detailed Product Description
Model: EP430 Crimping Force: 12T
Crimping Range: 16-400mm2 Crimping Type: Hexagon Crimping
Type: Manul Crimping Tools Dies: 50-400mm2
High Light:

hydraulic cable crimping tool

,

hydraulic crimping tool for electrical cables

EP-430 Hydraulic Cable Lug Crimping Tool With Safety Valve For Crimping Terminal 16-400sqmm



Model EP-430 Handheld / Manual Hydraulic Press Crimping Tool with 16-400 mm2 Crimping Range

Item number

16199 16200

Model

EP-430 EP-510

Crimping

force

120KN 130KN

Crimping

range

16-400mm² 16-400mm²
Crimping

type

hexagon crimping

hexagon crimping

Dies

50,70,95,120,150,

185,240,400mm²

50,70,95,120,150,

185,240,400mm²

Stroke

32mm 38mm

(CC)

Oil capacity

145cc 200cc

Length

approx.770mm approx.780mm

(KG)

Weight

approx.N.W7.1KG

G.W10.7KG

approx.N.W7.4KG

G.W11KG

Package

plastic box plastic box

Manual Hydraulic Press Tool,Hydraulic Crimping Tool

Manual hydraulic press tool, hydraulic crimping tool for EP-430 is used to compress copper and aluminum terminals. The compression mould can be replaced and easy operation.There is a safety protection device of "Kacha"voice when it reaches to the high voltage or low voltage.It can be used in working in the higher levels by one person.It saves time and labor.Pump is connected

EP430 Hydraulic Cable Lug Crimping Tool With Safety Valve For Crimping Terminal 16 - 400sqmm 0
