High Capacity Hydraulic Busbar Punching Machine / Hydraulic Busbar Bending Machine

High Capacity Hydraulic Busbar Punching Machine / Hydraulic Busbar Bending Machine
High Capacity Hydraulic Busbar Punching Machine / Hydraulic Busbar Bending Machine High Capacity Hydraulic Busbar Punching Machine / Hydraulic Busbar Bending Machine

Large Image :  High Capacity Hydraulic Busbar Punching Machine / Hydraulic Busbar Bending Machine

Product Details:
Place of Origin: ningbo china
Brand Name: Linkai
Certification: ISO
Model Number: EPCB-301
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: get the latest
Packaging Details: wooden case
Delivery Time: 2-4 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100sets/week
Detailed Product Description
Model: EPCB-301 Name: Bus Bar Processor Machine
Punching: CH 60-CH70 Cutter: CWC 150,CWC200
Bending: CB150D CB200A Electrical Pump: ZCB6-5-AB
High Light:

hydraulic crimping tool for electrical cables

,

hydraulic wire crimping tool

EPCB-301 Multi Function Hydraulic Bus bar Processor Machine for Cutting,Punching and Bending



EPCB-301 Multi-function Bus bar Punching Bending and Cutting Processor Machine

Item number 06232 06231A 06231
Model EPCB-301 EPCB-401A EPCB-401
Function

with three functions,cutting,

punching and bending

punching, bending and crimping

with Four functions,cutting,

punching and bending(horizontal

and erective)

Dimension of

work table

approx.690x690x730mm approx.690x690x730mm approx.690x690x730mm

Voltage single

phase

220V50HZ 220V50HZ 220V50HZ

Rating oil

pressure

700kg/cm2 700kg/cm2 700kg/cm 2
Bending force 170KN/200KN 170KN/200KN 270KN



Bending range

150x10mm max/200x12mm max 150x10mm max/200x12mm max 125x12.5mm max
Cutting force 200KN/300KN 200KN/300KN 200KN/300KN
Cutting rang 150x10mm max/200x12mm max 150x10mm max/200x12mm max 150x10mm max/200x12mm max
Punching force 300KN/350KN 300KN/350KN 300KN/350KN

Distance from hole

to sheet side

95x110mm max 95x110mm max 95x110mm
Punch rang

φ10.5mmΦ13.8mm

φ17mmΦ20.5mm

φ10.5mmΦ13.8mm

φ17mmΦ20.5mm

3/8"(Φ10.5mm),1/2"(φ13.8mm),

5/8"(φ17mm),3/4"(φ20.5mm)

Package wooden case wooden case wooden case



Multi-function Busbar Processing Machine

This machine is with reference to foreign advanced products ,combined with domestic practical

situation , to provide the efficiency and guarantee of safety requirement and the design of form a

complete set of equipment .Most suitable for making large electric cabinet and transmission and distribution construction project fields use .High flexibility , small volume , big power , high production capacity and high work efficiency .Low noise ,harmless processing . Finishing product is beautiful and won't cause pollution to the environment .

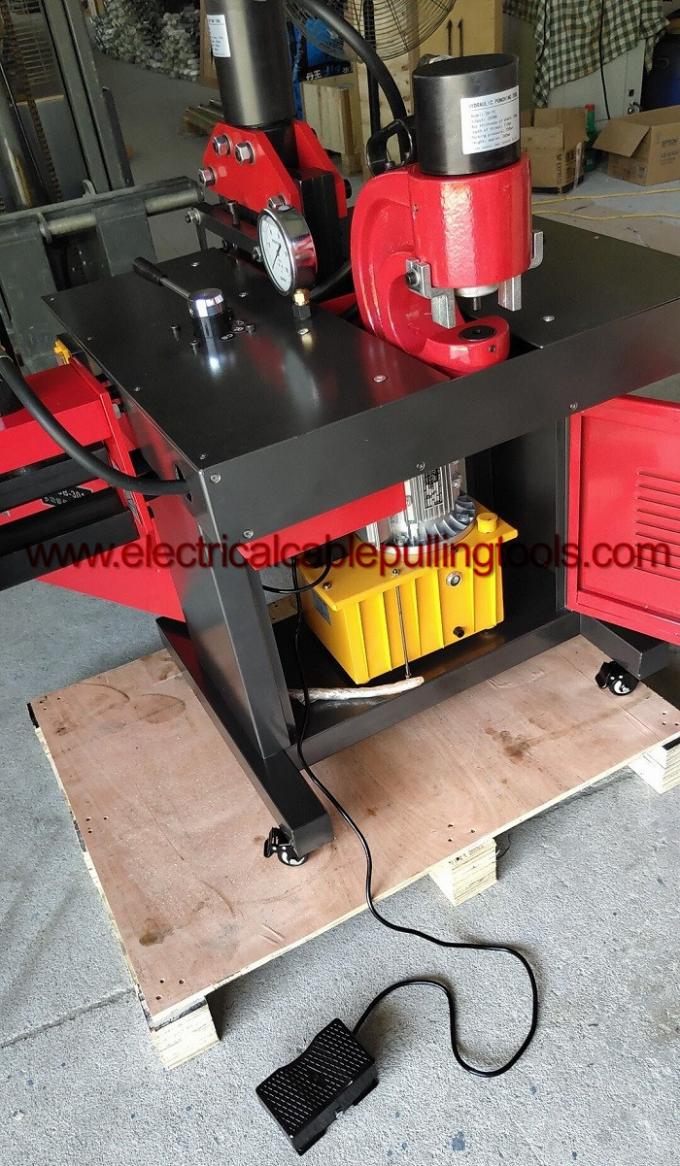

Model EPCB-301 sets:

Hydraulic punching device:CH60,CH70, 300KN and 350KN had die 10.5mm,13.8mm,17mm,20.5mm

Hydarulic bus-bar bender: CB150D,CB200A, it has Cu/Al plate 150*10mm, and 200*12mm

Hydraulic copper aluminum bus-bar cutter, it has CWC150,CWC200, with 200KN and 300KN cutting force, Cu/Al 150*10mm, and 200*12mm

Hydraulic electrical pump: ZCB6-5-AB, 750KW out put, 70Mpa.
