Gasoline Engine Wire Rope Winch 2 Ton For Wire Take Up / Wire Rope Rewinder

Gasoline Engine Wire Rope Winch 2 Ton For Wire Take Up / Wire Rope Rewinder
Gasoline Engine Wire Rope Winch 2 Ton For Wire Take Up / Wire Rope Rewinder Gasoline Engine Wire Rope Winch 2 Ton For Wire Take Up / Wire Rope Rewinder

Large Image :  Gasoline Engine Wire Rope Winch 2 Ton For Wire Take Up / Wire Rope Rewinder

Product Details:
Place of Origin: Ningbo China
Brand Name: Linkai
Certification: ISO
Model Number: SFJ
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest pric e
Packaging Details: Wooden case
Delivery Time: 3-5 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1000set/week
Detailed Product Description
Model: SFJ-20 Item: 08153
Engine: Gasoline Rated Load: 20KN
Weight: 180kg Speed: 7.5-14 M/min
High Light:

gasoline powered winch

,

portable capstan winch

Wire Rope Winch 2 Ton with Gasoline Engine for Wire Take Up / Wire Rope Rewinder

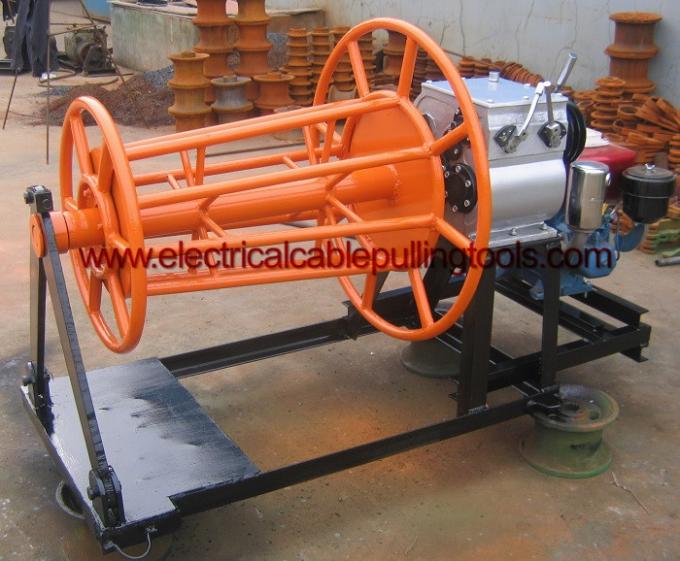

This wire take up machine serves to recycle the old conducting wire or the overhead ground wire.

Item Model Rated load(KN) Pulling speed(m/min) Engin Weight(kg)
08151 SFJ-10 10 13.3-24.3 Gasoline 160
08152 SJ-10C 10 13.3-24.3 Diesel 160
08153 SFJ-20 20 7.5-14 Gasoline 180
08154 SFJ-30 30 7.5-28 YAMAHA gasoline 185

Diesel /gasoline engine wire stringing machine, wire take up winch is used for tower erection, stringing in electric power line construction.It is mainly used for recycling old wires, cables and traction ropes. The wire, cable or traction rope needs to be sorted by rules. It is convenient for transportation, storage and so on.



1.small size & compact structure.The machine is now supported by gasoline engine, diesel engine, electric or imported gasoline engine.

2.high efficiency. It reduces the labor intensity, improves working efficiency with less operators and convenient field command.

3.Winch can be modified as per requirement, such as changing curve capstan into straight even cylindrical shape and coming with steel rope.

4.safe and reliable. The machine has the interlocking brake device, accurate positioning, excellent braking performance, flexible usage, safety and trust.

Gasoline Engine Wire Rope Winch 2 Ton For Wire Take Up / Wire Rope Rewinder 0
