Portable Frame Electrical Cable Pulling Tools For Cable Laying / Pipeline Cleaning

Portable Frame Electrical Cable Pulling Tools For Cable Laying / Pipeline Cleaning
Portable Frame Electrical Cable Pulling Tools For Cable Laying / Pipeline Cleaning Portable Frame Electrical Cable Pulling Tools For Cable Laying / Pipeline Cleaning Portable Frame Electrical Cable Pulling Tools For Cable Laying / Pipeline Cleaning

Large Image :  Portable Frame Electrical Cable Pulling Tools For Cable Laying / Pipeline Cleaning

Product Details:
Place of Origin: NINGBO
Brand Name: Linkai
Certification: ISO CE
Model Number: Duct Rodder
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Get the latest
Packaging Details: Carton packing
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000sets/month
Detailed Product Description
Name: Cable Rodder Apply: Cable Laying Cleaning
Color: Yellow Length: 300mm
Diameter: 12mm Frame: Protable Wheel
High Light:

electrical wire pulling tools

,

stringing pulling tools

Portable Frame with Wheels Cable Rodder for Cable Laying and Pipeline Cleaning



Know the Rodder from Rod Structure, Rod Size and Frame:

► Rod Structure: There are two kinds of fiberglass rod: All the rods are manufactured from premium state-of-the-art materials, and formulated to offer the high performance & durability demanded by our customers. Now available in either standard rod and detectable rod. Standard rod come with fiberglass inner core and PP sheath. Detectable rod come with fiberglass inner core, PP sheath and Inserted copper wire.

► Standard rod: This structure designed for most common duct rodder, which come complete with two mainly parts of Fiberglass inner core and PP sheath. Commonly, We usually called this rodder as standard duct rodder or conventional duct rodder. we produce this fiberglass rodders' environment temperature for -40~+80℃.
► Traceable rod: Traceable rod has the same flexibility and tensile strength of standard rod. Additionally, as the name says that “traceable” means you can find some problems underground without digging or trenching. Because this structure of traceable rodder comes with a electric insert copper wire, which could be detectable and locatable. So we called this detectable duct rodder, locatable duct rodder or hunter rodder.

Portable Frame Electrical Cable Pulling Tools For Cable Laying / Pipeline Cleaning 0Portable Frame Electrical Cable Pulling Tools For Cable Laying / Pipeline Cleaning 1

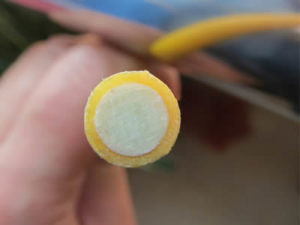

Photo 1) Standard rod complete with fiberglass inner core and PP sheath;

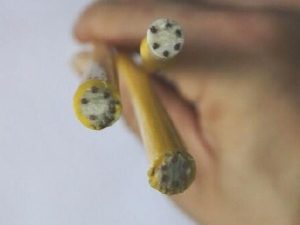

Photo 2) Traceable rod complete with fiberglass inner core, PP sheath and copper or steel wire.



Duct Push Rodder

Specification Rod Diameter (mm) Φ4,Φ4.5,Φ5,Φ6,Φ8,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16,
Rod Length (m) 30~500
Frame Spec.(mm) 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, etc
Wheel Diameter(mm) 300mm
Wall thickness of Metal Frame 2.2mm
Color blue, yellow, red, white etc
Material Rod Inner Extruded by fiber glass and high strength resin at high temperature
Rod Outer High Density polyethylene coating
Iron Frame Steel with high-temperature sprayed plastic or Spray coating
Wheel rubber
Brake Yes
Drawing head copper
Physical Character Density 150g/m
Working temperature -40°C to +80°C
Breaking tension 4.5T
Bending Radius 295mm
Technology Pultrusion
Packing Inside plastic woven strip wind around the frame
Outside Wooden pallet and Wooden box

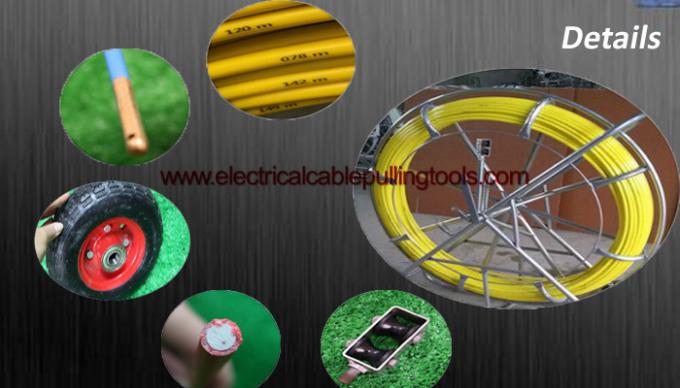

Quick Information of cable rodder:

Copper head High quality copper drawing head
Rod Guilde Guide dirction go smoothly
Meter mark Used for measuring distance
Frame Easily push and pull
Fibergalss duct rodder Durable, resistance, acid and alkale,light weight
Big rubber wheel  Make the push and pull easily

Portable Frame Electrical Cable Pulling Tools For Cable Laying / Pipeline Cleaning 2
