Transmission Line Hydraulic Cable Tensioner 40KN 220KV Hydraulic Puller

Transmission Line Hydraulic Cable Tensioner 40KN 220KV Hydraulic Puller
Transmission Line Hydraulic Cable Tensioner 40KN 220KV Hydraulic Puller Transmission Line Hydraulic Cable Tensioner 40KN 220KV Hydraulic Puller

Large Image :  Transmission Line Hydraulic Cable Tensioner 40KN 220KV Hydraulic Puller

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SA-YQ40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Export term
Delivery Time: 8-15 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10 sets / month
Detailed Product Description
Model: SA-YQ40 Name: Hydraulic Puller
Apply: 220KV Transmission Line Using: Pulling Conductor
Force: 40KN Grooves Number: 7
High Light:

hydraulic cable tensioner

,

conductor stringing machine

Cable Pulling Tools 40KN Hydraulic Cable Puller For 220KV Transmission Line



Our SA-YQ40 Hydraulic Puller has an overload automatic protection function. The maximum traction force for conductor stringing operation is able to be preset. Another function is the automatic action of spring applied hydraulically released brake. Owing to it, our product is safe to be operated, in case that the motor suddenly turns off, or other reasons cause the hydraulic failure.

In use of this SA-YQ40 Hydraulic Puller, both pulling speed and traction force are steplessly adjustable. The pull in the rope can be clearly displayed on the line pull gauge. Moreover, our product employs the steel wire rope automatically winding device, for automatic rope arrangement as well as easy loading and unloading.

Main Specifications

Cable Pulling Tools 40KN Hydraulic Cable Puller For 220KV Transmission Line

Model SA-YQ40 Hydraulic Puller
Maximum Traction Force (kN) 40
Continuous Tractive Effort (kN) 35
Maximum Pulling Speed (km/h) 5
Bullwheel Bottom of Groove Diameter (mm) Φ400
Number of Bullwheel Grooves 7
Maximum Diameter of Suitable Steel Rope (mm) Φ16
Maximum Through Connector Diameter (mm) Φ50
Engine Power / Speed (kW/rpm) 60/2000
Dimensions (mm) 3500× 2000× 2300
Weight (kg) 2500

Main Components

Cable Pulling Tools 40KN Hydraulic Cable Puller For 220KV Transmission Line

Engine Cummins (DONGFENG ) water cooled engine
Main Variable Pump and Main Motor Rexroth (BOSCH)
Reducer RR (Italian)
Main Hydraulic Valve Rexroth (BOSCH)
Radiator AKG
Hydraulic Instrument WIKA
Suitable Drum Model GSP1400 (Item number: 07125C)

How about the delivery date?
A.: Within 15 days after deposit received. Urgent order or small order will be handled case by case.

What are your Payment terms?

A. General speaking: TT 50% deposit, the balance is paid upon the copy of B/L.
B. We also accept: L/C, D/A, D/P, Western Union, MoneyGram and Paypal.

How to order?

Step 1 Contact Us
Show Us Item Name, Colors, Quantity and Details / Requirements
Step 2 Make a Performa Invoice for you
Step 3 Performa Invoice Confirm and Payment
Step 4 Production and Shipment

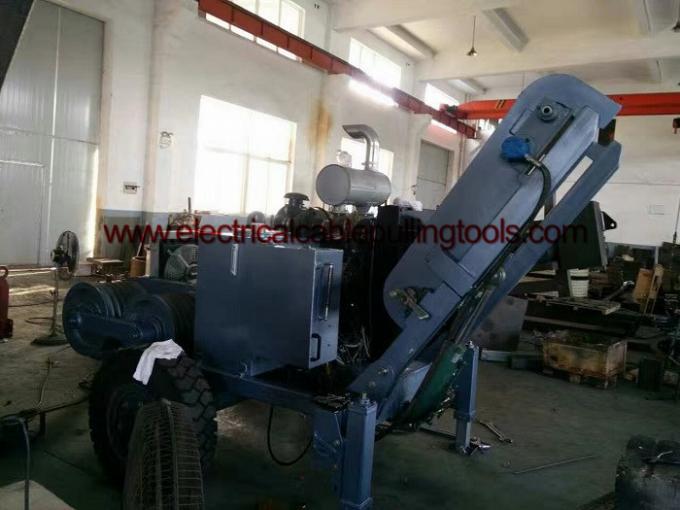

Transmission Line Hydraulic Cable Tensioner 40KN 220KV Hydraulic Puller 0

Our Service:

High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;

Send you some free samples along with your cargo to share us quality;

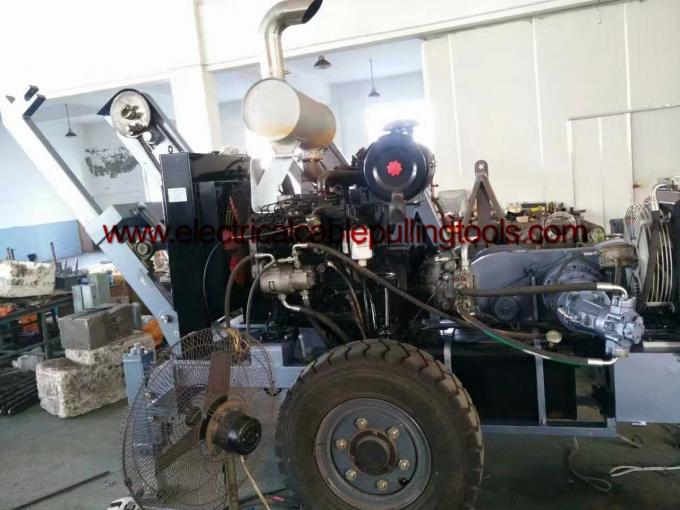

Transmission Line Hydraulic Cable Tensioner 40KN 220KV Hydraulic Puller 1
