Light Weight CP-180 Hydraulic Crimping Tool , Portable Hydraulic Oil Pump

Light Weight CP-180 Hydraulic Crimping Tool , Portable Hydraulic Oil Pump
Light Weight CP-180 Hydraulic Crimping Tool , Portable Hydraulic Oil Pump Light Weight CP-180 Hydraulic Crimping Tool , Portable Hydraulic Oil Pump

Large Image :  Light Weight CP-180 Hydraulic Crimping Tool , Portable Hydraulic Oil Pump

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: CP180
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Carton
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 set / week
Detailed Product Description
Model: CP180 Name: Maual Pump
Oil Pressure: Max 70Mpa Oil Volume(L): 0.35
Weight: 5.2kg Type: Hydraulic Oil Pump
High Light:

hydraulic cable crimping tool

,

hydraulic wire crimping tool

Light Weight CP-180 70MPa Manual Pump,Hydraulic Hand Pump,Hydraulic Oil Pump

Hydraulic Hand Pump,Hydraulic Oil Pump Application
Light Weight CP-180 70MPa Manual Pump,Hydraulic Hand Pump,Hydraulic Oil Pump
It can provide power for the cutting tool, the hydraulic compressor, punching machine.and other construction machinery, which is operated in the wild field in electric power,railway, rescue, construction and other industries.

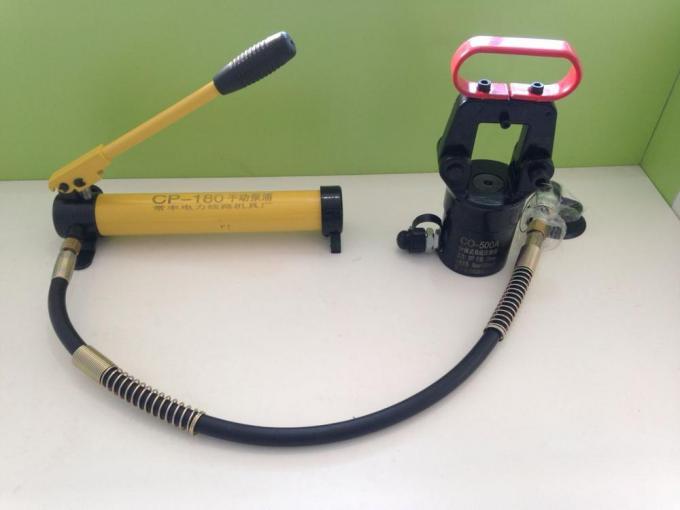

Manual Hydraulic Hand Pump CP-180
Light Weight CP-180 70MPa Manual Pump,Hydraulic Hand Pump,Hydraulic Oil Pump
CP-180 Light Weight Hydraulic Hand Pump Manual Pump 70MPa For Connecting Crimping Head
1. this single hole homework pump,high and low type ,producing oil amount fast even have no
electricity,operation too convenient ,all the working pressure functions are same as battery operated.
2. this type have ride,manual operation mode,oil pipe enclose 2m,it can extend to purchase .
3. pressure stop the middle can keeping ,indoor design high pressure safe protection hydraulic pressure value.
Technical Data Light Weight CP-180 70MPa Manual Pump,Hydraulic Hand Pump,Hydraulic Oil Pump

Item NO. Rated output Oil capacity Size Weight remarks
CP-180 700kg/cn2 350CC 420*260*260mm 5kg manual type
CP-390 700kg/cn2 400CC 420*260*260mm 5.4kg manual type
CP-700 700kg/cn2 900CC 680*185*185mm 12kg manual type
CP-700-2 700kg/cn2 2100 710*185*190mm 13kg manual type

Maual Pump Characteristic
Light Weight CP-180 70MPa Manual Pump,Hydraulic Hand Pump,Hydraulic Oil Pump
1. High pressure, hydraulic lightweight hand pumps feature a compact design and are available in single and two speed pump types
2. Durable glass-filled nylon reservoir and nylon encapsulated aluminium pump base for maximum corrosion resistance
3. Two-speed operation reduces handle strokes by as much as 78% over single speed pumps
4. Lower handle effort to minimize operator fatigue
5. Handle lock and lightweight construction for easy carrying
6. Large oil capacities to power a wide range of cylinders or tools
7. Non-conductive fiberglass handle for operator safety
8. Internal pressure relief valve for overload protection.
