Double Offset Basic Construction Tools , Ring Spanner Wrench Plum Wrench

Double Offset Basic Construction Tools , Ring Spanner Wrench Plum Wrench
Double Offset Basic Construction Tools , Ring Spanner Wrench Plum Wrench Double Offset Basic Construction Tools , Ring Spanner Wrench Plum Wrench

Large Image :  Double Offset Basic Construction Tools , Ring Spanner Wrench Plum Wrench

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: Wrench
Payment & Shipping Terms:
Minimum Order Quantity: 20 pcs
Price: negotiable
Packaging Details: Carton or wooden case
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 20000 pcs / month
Detailed Product Description
Name: Plum Wrench Type: Double Head
Material: Galvanzied Steel Using: Tighten Bolts
Item: Wrench Length: 480mm
High Light:

cable pulling device

,

cable pulling accessories

Galvanzied Double Offset Ring Spanner Wrench,Plum Wrench,Quincuncial Wrench



Galvanzied Double Offset Ring Spanner Wrench,Plum Wrench,Quincuncial Wrench:

Galvanzied Double Offset Ring Spanner Wrench,Plum Wrench,Quincuncial Wrench,Double Offset Ring Spanner applies to tighten the bolt of iron tower and tighten other bolt.Double Offset Ring Spanner applies to tighten the bolt of iron tower and tighten others, it has the high quality steel alloy galvanized, convenient to use, and best strength, this spanner wrench has 3 types, double-head forged, chrome-palte, double head galvanzied, and single head. Pls kindly refer to the data below.

Item number Specification Length (mm) Weight (kg) Remark
05151 M16, M20 480 1.4 Double head Forged .chrome-plate
05152 M20, M24 1.5
05155A M27, M30 600 2.3 Double head Galvanized
05155B M33, M36 650 2.6
05155C M36, M39 700 3.0
05156A M27 550 1.7 Single head Galvanized
05156B M30 550 1.8
05156C M33 550 1.8
05156D M36 600 2.0
05156E M39 600 2.1
05156F M42 700 2.6
05156G M45 700 2.7
05156H M48 700 2.7
05156J M52 750 3.0
05156K M56 750 3.1
05156L M60 750 3.1
05156M M64 750 3.2
05156N M68 750 3.3
05156P M72 750 3.4

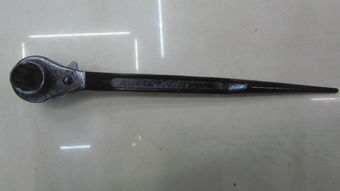

Scaffolding Tools Ratchet Wrench for Tower Erection Tighten Solid Nut

is used for tower erection tighten solid nut, ratchet defend fall and every one has two sleeves, use convenience.Features:Safe and Reliable;Light in weight;

Here is the data sheet let your reference

Item number Specification Length (mm) Weight (kg)
05101 14(M8), 17(M10) 310 0.6
05103 19(M12), 22(M14) 310 0.6
05104 19(M12), 24(M16) 310 0.6
05105 22(M14), 24(M16) 310 0.6
05106 24(M16), 27(M18) 310 0.7
05107 24(M16), 30(M20) 360 0.9
05108 24(M16), 32(M22) 360 0.9
05109 27(M18), 30(M20) 360 0.9
05110 27(M18), 32(M22) 360 0.95
05111 30(M20), 32(M22) 360 1.0
05112 30(M20), 36(M24) 360 1.0
05113 32(M22), 36(M24) 360 1.1

Sharp-end wrench is used for tower erection tighten solid nut, the whole adoption alloy steel forges.

Features: small size & compact structure; light weight; Material:alloy steel

Item number Specification Length (mm) Weight (kg)
05121 14(M8) 280 0.2
05122 17(M10) 280 0.25
05123 19(M12) 300 0.35
05124 22(M14) 320 0.45
05125 24(M16) 350 0.65
05126 27(M18) 360 0.7
05127 30(M20) 400 1.0
05128 32(M22) 400 1.2
05129 36(M24 420 1.4
05130 41(M27) 450 1.9
05131 46(M30) 480 2.5
05132 50(M33) 500 3.0
05133 55(M36) 520 3.9
05134 65(M42) 520 4.2

Double Offset Basic Construction Tools , Ring Spanner Wrench Plum Wrench 0
