Hexagon Galvanized Cable Pulling Device Wire Rope Anti Twisted With 6 Squares

Hexagon Galvanized Cable Pulling Device Wire Rope Anti Twisted With 6 Squares
Hexagon Galvanized Cable Pulling Device Wire Rope Anti Twisted With 6 Squares

Large Image :  Hexagon Galvanized Cable Pulling Device Wire Rope Anti Twisted With 6 Squares

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: Anti Twist Braid Rope
Payment & Shipping Terms:
Minimum Order Quantity: 1000 meter
Price: negotiable
Packaging Details: Steel roll
Delivery Time: 8 - 10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 10000meter/day
Detailed Product Description
Name: Anti Twist Braid Rope Strands: 12,18
Type: Steel Rope Advantage: Galvanized Teatment
Feature: Breaking Load High Dia: 10 Mm
High Light:

transmission line tool

,

cable pulling tools

Hexagon Anti Twisted Pilot Rope Galvanised Steel Wire Rope With 12 Strands



Quick details:Hexagon Anti Twisted Pilot Rope Galvanised Steel Wire Rope With 12 Strands

1. Transmission Line Stringing Accessories

2. Anti twist Galvanized Steel Wire Rope 6 Squares 12 Strands

3. Normal Diameter: 20mm

4. Breakage load: 250kN

5. Size available: 9~30mm

6. Length: 1000m

7. Reel diameter: 1400mm

Anti Twist Braid Rope Data Sheet Technical Data

We adopt high quality steel rope to braide anti-twisting steel rope.It is used for pulling the conductor in the overhead transmission line.

Model Structure

Nominal

Dia

(mm)

Single

bundle

Dia

(mm)

Ref

Weight

(kg/100m)



Breaking

Force(KN)

Standard

Length

(m)

HL9-12×19W Hexagon with 12 strands 9 2.0 26.69 55.0 1000
HL11-12×19W Hexagon with 12 strands 11 2.5 45.73 80.5 1000
HL13-12×19W Hexagon with 12 strands 13 3.0 57.96 120.0 1000
HL16-12×19W Hexagon with 12 strands 16 3.5 82.80 158.0 1000
HL18-12×19W Hexagon with 12 strands 18 4.0 103.82 210.0 1000
HL20-12×T25Fi Hexagon with 12 strands 20 4.5 129.62 250.0 800
HL22-12×T25Fi Hexagon with 12 strands 22 4.8 147.88 320.0 800
HL24-12×T25Fi Hexagon with 12 strands 24 5.0-5.2 160.23 360.0 800
HL26-12×T25Fi Hexagon with 12 strands 26 5.5-5.6 193.71 420.0 700
HL28-12×T29Fi Hexagon with 12 strands 28 6.0 230.50 480.0 500
HL30-12×T29Fi Hexagon with 12 strands 30 6.5 272.04 540.0 500
HL20-18×19W Hexagon with 18 strands 20 4.0 159.80 300.0 800
HL22-18×T25Fi Hexagon with 18 strands 22 4.2 189.80 389.0 800
HL24-18×T25Fi Hexagon with 18 strands 24 4.8 216.20 440.0 800
HL26-18×T25Fi Hexagon with 18 strands 26 5.2 276.80 480.0 700
HL28-18×T29Fi Hexagon with 18 strands 28 5.4 301.20 580.0 500
HL30-18×T29Fi Hexagon with 18 strands 30 5.6 361.60 658.0 500
HL32-18×T29Fi Hexagon with 18 strands 32 6.0 423.00 780.0 500

Application

Hexagon 12 Strands Galvanized Anti Twisting Steel Wire Rope Pilot Rope is applied to mechanical pulling and tensioning release conductors.

Anti-twisting braided wire rope with high strength hot dip galvanized steel quality air processed by the special process of special woven rope line. It has high strength, good flexibility, corrosion rust-proof, not to fight the golden hook, and difficult to tie, long life and so on. Tension applied to pay-off power lines construction, lifting equipment with the balance shaft and the tail rope of mine, port and other major lift crane wire rope does not rotate when the required place.

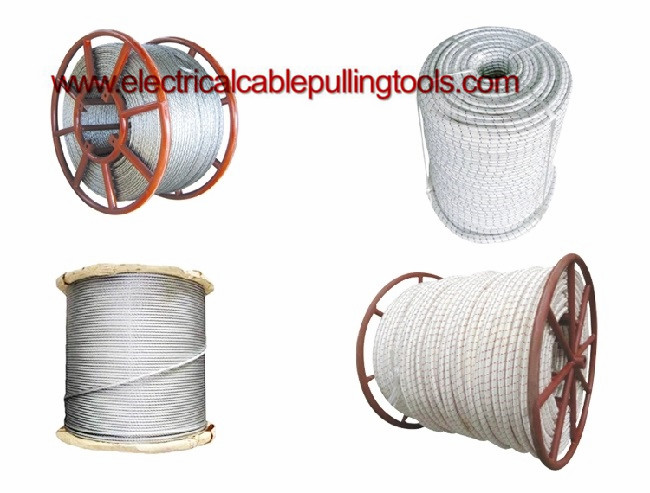

Hexagon Galvanized Cable Pulling Device Wire Rope Anti Twisted With 6 Squares 0

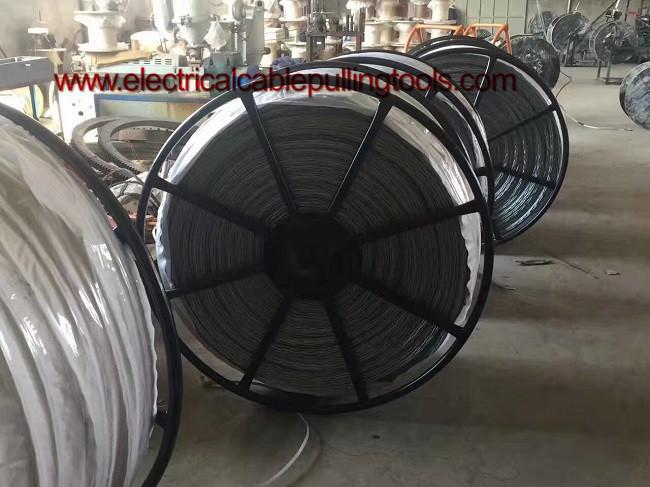

Hexagon Galvanized Cable Pulling Device Wire Rope Anti Twisted With 6 Squares 1

FAQ:

1. Are you a manufacturer or a trading company?
We are a professional fasteners manufacturer with rich experience. And in order to do business with your company well, we established a branch to open the foreign trade fields.
2. Do you offer free samples?
We can provide free samples below 10 USD and you should pay the freight. After you place an order, we will give back the freight.
3. Do you accept our design on products or boxes?
Yes. We accept customized design and we have a professional design team who can design products based on your requirements.
4. How long is your delivery time?
Generally 7-10 days if the goods are in stock or 15-30 days not in stock.In a word, according to the order quantity.
