SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave

SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave
SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave

Large Image :  SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: SZ2
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 8-10 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200 pcs / month
Detailed Product Description
Name: Head Boards Bundle: Two
Model: SZ2 Type: Independent
Load: 80 KN Weight: 17 KG
High Light:

transmission line tool

,

cable pulling tools

SZ2 Model 80KN Running Board For Two Bundle Conductors Poising Sheave



Notes:Can be customized according to the specificaiton of other stringing blocks.

SZ2 Model 80KN Running Board For Two Bundle Conductors Poising Sheave Data

Model Rated load(KN) Weight(kg) Applicable tackle width of wheel Feature
SZ2-8 80 17 75 Independent
SZ2-8A 19 100
SZ2-8B 19.5 110
SZ2A-8 90 100 Poising sheave
SZ2A-8T 100 110
SZ2B-13 130 55 110 Independent
SZ2C-13 50 110
SZ2B-18 180 90 125

This running boards, has two types, independent, poising sheave, applicable tackle width of 75-125mm wheel, it can be customized according to the specificaiton of other stringing blocks.while the rated load max reached to 18T, this model is only for two bundle conductor in the operation site. But our plant, also made the head boards, to the three, and four conductos, they all have the features, to avoid torsion strain accumulation during line stringing.

SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave 0

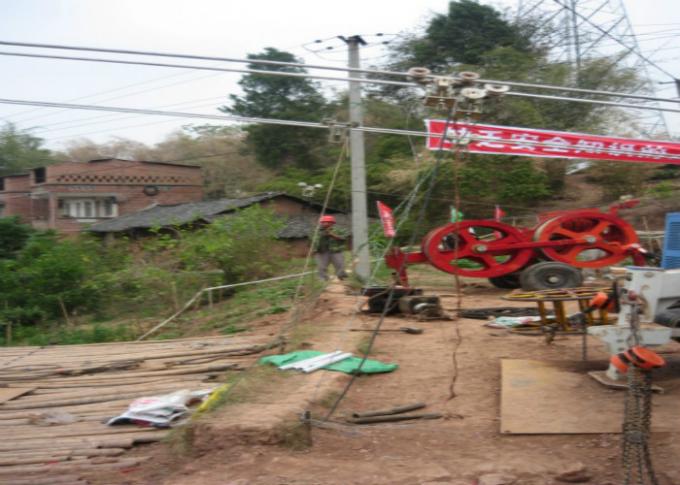

SZ2 Model 80KN Running Board For Two Bundle Conductors Poising Sheave Application show

SZ2 Model Transmission Line Stringing Tools Running Boards For Poising Sheave 1
