15T Heavy Duty Steel Snatch Hoisting Tackle For Overhead Line Construction

15T Heavy Duty Steel Snatch Hoisting Tackle For Overhead Line Construction
15T Heavy Duty Steel Snatch Hoisting Tackle For Overhead Line Construction

Large Image :  15T Heavy Duty Steel Snatch Hoisting Tackle For Overhead Line Construction

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: QH
Payment & Shipping Terms:
Price: negotiable
Detailed Product Description
Certification: ISO Item: Lifting Block
Rated Load: 15T Type: G,H,B
Warranty: 1year Material: Iron
High Light:

tower climbing equipment

,

tower climbing kit

15T Heavy Duty Steel Snatch Hoisting Tackle For Overhead Line Construction



Application:

15T Heavy Duty Steel Snatch Hoisting Tackle For Overhead Line Construction

Hook type wire rope snatch pulley block is used for lifting and sagging operation in transmission line construction. It is used for pole and tower erection, line construction, equipment hoisting and other lifting applications.The sheave is made of high strength qualified steel, the sheave is mounted on ball bearings. The frame of pulley blocks is galvanized. All the blocks have been tested before ex-works.The single sheave pulley block can be designed as side open type and side closed type.

Steel Snatch Hoisting Tackle Date:

15T Heavy Duty Steel Snatch Hoisting Tackle For Overhead Line Construction

Item Number Model Number of Sheave Rated Load (kN) Sheave
Outer Diameter × Sheave Width (mm)
Rope Diameter (mm) Weight (kg) Hoisting Point Type
11181 QH1-1K 1 10 Φ100×31 Φ7.7 2.8 G H
11182 QH1-2 2 10 Φ80×28 Φ6 2.8 G H
11183 QH1-3 3 10 Φ80×27 Φ6 4.1 G H
11191 QH2-1K 1 20 Φ120×35 Φ9.3 4.2 G H B
11192 QH2-2 2 20 Φ100×31 Φ7.7 4.2 G H
11193 QH2-3 3 20 Φ100×31 Φ7.7 6 G H
11201 QH3-1K 1 30 Φ150×39 Φ11 7 G H B
11202 QH3-2 2 30 Φ120×35 Φ9.3 5.3 G H
11203 QH3-3 3 30 Φ100×31 Φ7.7 6.5 G H
11211 QH5-1K 1 50 Φ166×40 Φ13 9.6 G H B
11212 QH5-2 2 50 Φ150×39 Φ11 10.8 G H
11213 QH5-3 3 50 Φ120×35 Φ9.3 7.7 G H
11221 QH8-1K 1 80 Φ205×50 Φ17 12.5 G H B
11222 QH8-2 2 80 Φ166×40 Φ13 17 G H
11223 QH8-3 3 80 Φ150×39 Φ11 17.5 G H
11231 QH10-1K 1 100 Φ246×60 Φ18.5 25 G   B
11232 QH10-2 2 100 Φ166×40 Φ13 18.5   H
11233 QH10-3 3 100 Φ150×39 Φ11 20   H
11241 QH15-1K 1 150 Φ280×65 Φ21.5 34     B
11242 QH15-2 2 150 Φ205×50 Φ17 22   H
11243 QH15-3 3 150 Φ166×40 Φ13 26   H
11244 QH15-4 4 150 Φ150×39 Φ11 30   H
11248 QH20-4 4 200 Φ205×50 Φ17 50   H

Other brother blocks pls refer to the photo or contact us freely.

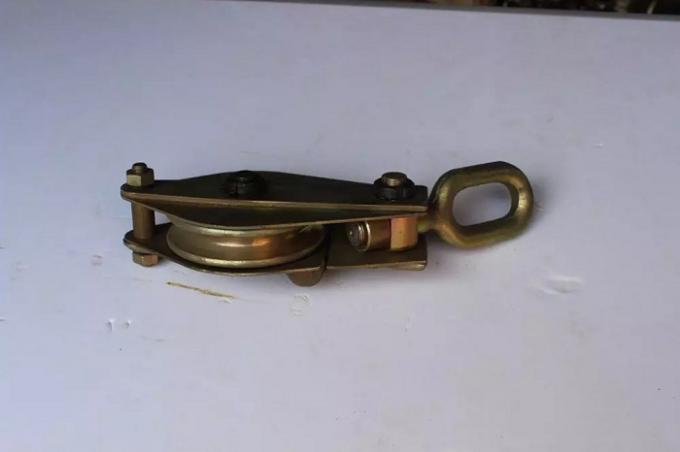

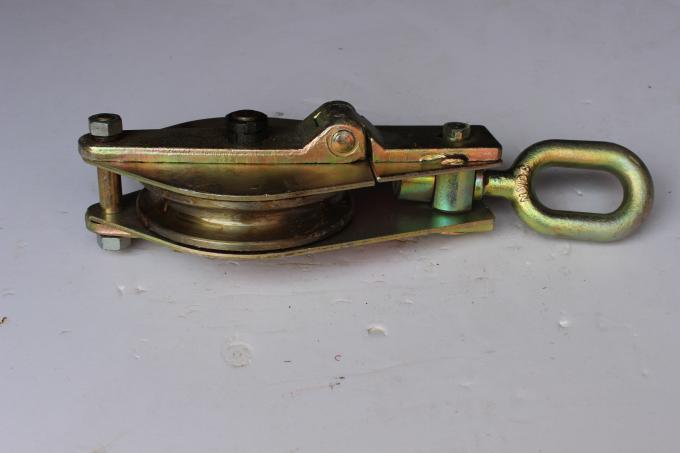

15T Heavy Duty Steel Snatch Hoisting Tackle For Overhead Line Construction 015T Heavy Duty Steel Snatch Hoisting Tackle For Overhead Line Construction 1
