JKT-300 Construction Safety Tools Concrete Pole Climber For Power / Mail Line

JKT-300 Construction Safety Tools Concrete Pole Climber For Power / Mail Line
JKT-300 Construction Safety Tools Concrete Pole Climber For Power / Mail Line JKT-300 Construction Safety Tools Concrete Pole Climber For Power / Mail Line

Large Image :  JKT-300 Construction Safety Tools Concrete Pole Climber For Power / Mail Line

Product Details:
Place of Origin: NINGBO CHINA
Brand Name: Linkai
Certification: ISO CE
Model Number: JKT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pair
Price: negotiable
Packaging Details: Std exported wooden case
Delivery Time: 7 days after payment
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 pairs / week
Detailed Product Description
Application: Power Construction Name: Pole Climber
Rated Load: 1.65KN Open Range: 300 Mm Max
Pole Length: 8 M Material: Steel
High Light:

construction safety equipment

,

construction site safety equipment

Installation Safety Tool JKT-300 Concrete Pole Climber For 8m Concrete Pole



Features:Installation Safety Tool JKT-300 Concrete Pole Climber For 8m Concrete Pole
1. Special heat treatment
2 .Weight:3.0-3.5kg
3. Easy operating
4. High quality and best price

Application:Installation Safety Tool JKT-300 Concrete Pole Climber For 8m Concrete Pole
It is used to climb the concrete pole of power line, mail and telephone line.
Production assurance description
1. The following conditions are not in the scope of quality assurance:Deformation caused by stressing
application not according to the stated testing load. Corrosion caused by being affected with damp.Lack of nameplate, date of manufacture or test lot No.
2. storage,The climbers should be stored in the well ventilated place and you should keep it from corrosion.

3. Our climbers are produced according to local standard design and organizations , we will responsible for all quality problem for half year if the products are under normal use.

Data Details:Installation Safety Tool JKT-300 Concrete Pole Climber For 8m Concrete Pole

Model JK-T-300 JK-T-350 JK-T-400 JK-T-450
The biggest opening distance(mm) 300 350 400 450
Weight (kg) 3.0-3.5 3.0-3.5 3.0-3.5 3.0-3.5
Outer diameter of cement rod(mm) Φ190-Φ300 Φ250-Φ350 Φ250-Φ400 Φ250-Φ400
Rated load(KN) 1.00 1.00 1.00 1.00
Testing load(KN) 1.65 1.65 1.65 1.65
Overload(KN) 2.25 2.25 2.25 2.25
Testing time(min) 5 5 5 5
Remarks For 8m
cement pole

For 10-12m

cement pole

For 15m
cement pole

For 18m

cement pole

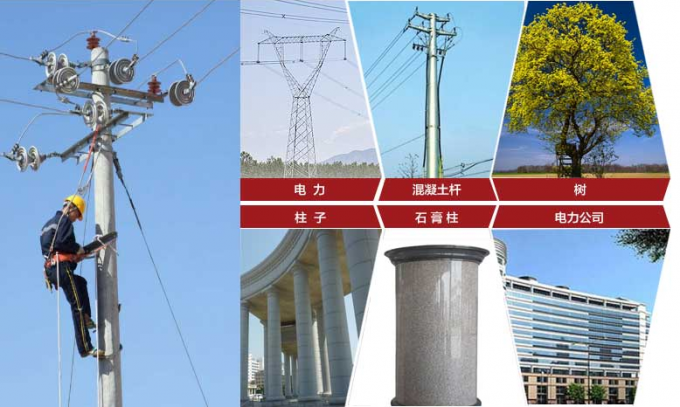

Application Site:Installation Safety Tool JKT-300 Concrete Pole Climber For 8m Concrete Pole

JKT-300 Construction Safety Tools Concrete Pole Climber For Power / Mail Line 0

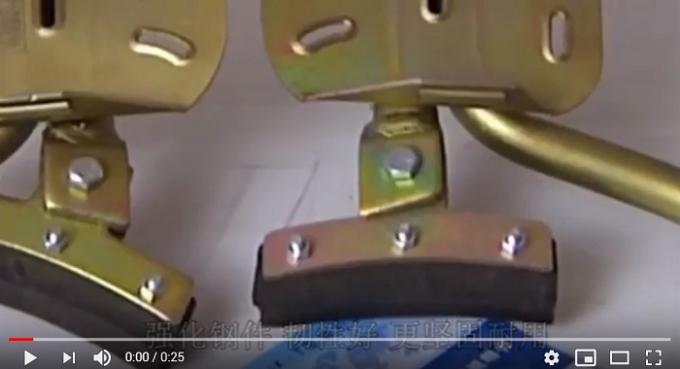

Please click below picture to find the video about application method



JKT-300 Construction Safety Tools Concrete Pole Climber For Power / Mail Line 1
